Hatch
High Quality Stainless Steel Semicircle Marine Deck Hatch
item no.:
LDHSlead time:
60 daysproduct orgin:
Taiwanshipping port:
Kaohsiungcolor:
SilverHigh Quality Stainless Steel Semicircle Marine Deck Hatch
# CE Approved. According to ISO/DIS 12216 Deck Hatches are approved for Area II, III, and IV, designs for craft type "any".
# No bolt holes showing, when hatch is closed.
# 316 stainless steel frames, hatch, and hinges. Hand polished and electro-polished to protect against corrosion. Frames and hatches are made from machine rolled stock to ensure strength and low weight.
# Tought, glare resistant grey acrylic tops.
# Gaskets are oil resistant Neoprene.
# Off-white powder coating are available

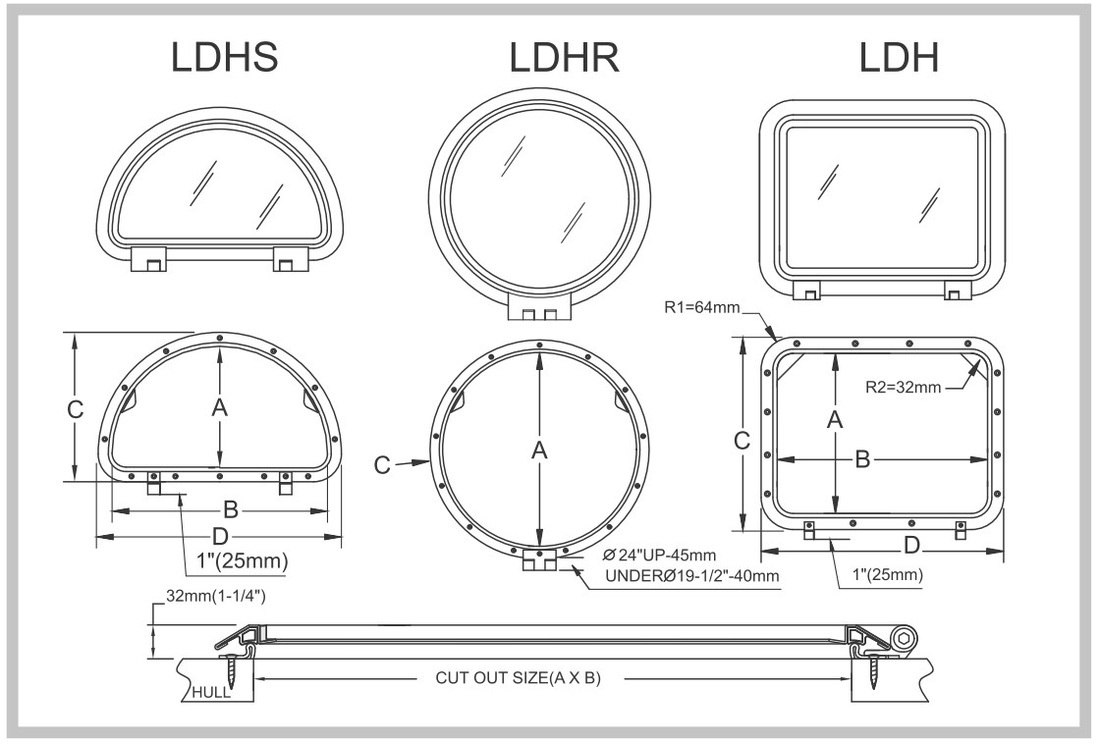

| LDHR INSIDE OPENING SPEC | ||||||||
| Part No. | Size | CUTOUT SIZE | OVERALL |
ACRYLIC THICKNESS |
WEIGHT | |||
| A | C | |||||||
| LDHR-40-I | 16 1/2 | 419 | 16 1/2 | 419 | 19 | 483 | 1/2 12 | 6.5KG |
| LDHR-50-I | 19 1/2 | 495 | 19 1/2 | 495 | 22 | 559 | 1/2 12 | 7.8KG |
| LDHR-60-I | 24 | 610 | 24 | 610 | 26 1/2 | 674 | 1/2 12 | 10.4KG |
| LDHR-70-I | 31 | 788 | 31 | 788 | 33 1/2 | 852 | 1/2 12 | 15.8KG |
| IN/MM | ||||||||
| LDHR IN/OUTSIDE OPENING SPEC | ||||||||
| Part No. | Size | CUTOUT SIZE | OVERALL |
ACRYLIC THICKNESS |
WEIGHT | |||
| B | D | |||||||
| LDHR-40-O | 16 1/2 | 419 | 16 1/2 | 419 | 19 | 483 | 1/2 12 | 6.6KG |
| LDHR-50-O | 19 1/2 | 495 | 19 1/2 | 495 | 22 | 559 | 1/2 12 | 7.9KG |
| LDHR-60-O | 24 | 610 | 24 | 610 | 26 1/2 | 674 | 1/2 12 | 10.6KG |
| LDHR-70-O | 31 | 788 | 31 | 788 | 33 1/2 | 852 | 1/2 12 | 16.0KG |
| IN/MM | ||||||||
| LDHS INSIDE OPENING SPEC | |||||||||||||
| Part No. | Size | CUTOUT SIZE | OVERALL |
ACRYLIC THICKNESS |
WEIGHT | ||||||||
| A | B | C | D | ||||||||||
| LDHS-40-I | 16 1/2 | 419 | 9 1/2 | 241 | 16 1/2 | 419 | 12 | 305 | 19 | 483 | 1/2 | 12 | 4.8KG |
| LDHS-50-I | 19 1/2 | 495 | 11 | 279 | 19 1/2 | 495 | 13 1/2 | 343 | 22 | 559 | 1/2 | 12 | 6.0KG |
| LDHS-60-I | 24 | 610 | 13 1/4 | 337 | 24 | 610 | 15 3/4 | 400 | 26 1/2 | 674 | 1/2 | 12 | 7.8KG |
| LDHS-70-I | 31 | 788 | 16 3/4 | 425 | 31 | 788 | 19 1/4 | 489 | 33 1/2 | 852 | 1/2 | 12 | 11.5KG |
| IN/MM | |||||||||||||
| LDHS IN/OUTSIDE OPENING | |||||||||||||
| Part No. | Size | CUTOUT SIZE | OVERALL |
ACRYLIC THICKNESS |
WEIGHT | ||||||||
| A | B | C | D | ||||||||||
| LDHS-40-O | 16 1/2 | 419 | 9 1/2 | 241 | 16 1/2 | 419 | 12 | 305 | 19 | 483 | 1/2 | 12 | 4.9KG |
| LDHS-50-O | 19 1/2 | 495 | 11 | 279 | 19 1/2 | 495 | 13 1/2 | 343 | 22 | 559 | 1/2 | 12 | 6.2KG |
| LDHS-60-O | 24 | 610 | 13 1/4 | 337 | 24 | 610 | 15 3/4 | 400 | 26 1/2 | 674 | 1/2 | 12 | 8.0KG |
| LDHS-70-O | 31 | 788 | 16 3/4 | 425 | 31 | 788 | 19 1/4 | 489 | 33 1/2 | 852 | 1/2 | 12 | 11.6KG |
| IN/MM | |||||||||||||
| LDHN INSIDE OPENING | |||||||||||||
| Part No. | Size | CUTOUT SIZE | OVERALL |
ACRYLIC THICKNESS |
WEIGHT | ||||||||
| A | B | C | D | ||||||||||
| LDH-N08-I | 8 1/8 X 13 3/4 | 206X349 | 8 1/8 | 206 | 13 3/4 | 349 | 10 5/8 | 270 | 16 1/4 | 413 | 1/2 | 12 | 4.5KG |
| LDH-N10-I | 10 X 10 | 254X254 | 10 | 254 | 10 | 254 | 12 1/2 | 318 | 12 1/2 | 318 | 1/2 | 12 | 4.2KG |
| LDH-N20-I | 12 1/2 X 17 1/2 | 318X444 | 12 1/2 | 318 | 17 1/2 | 444 | 15 | 382 | 20 | 508 | 1/2 | 12 | 7.0KG |
| LDH-N30-I | 14 1/2 X 19 1/2 | 369X495 | 14 1/2 | 369 | 19 1/2 | 495 | 17 | 433 | 22 | 559 | 1/2 | 12 | 8.0KG |
| LDH-N40-I | 16 1/2 X 16 1/2 | 419X419 | 16 1/2 | 419 | 16 1/2 | 419 | 19 | 483 | 19 | 483 | 1/2 | 12 | 7.9KG |
| LDH-N50-I | 19 1/2 X 19 1/2 | 495X495 | 19 1/2 | 495 | 19 1/2 | 495 | 22 | 559 | 22 | 559 | 1/2 | 12 | 10KG |
| LDH-N60-I | 24 X 24 | 610X610 | 24 | 610 | 24 | 610 | 26 1/2 | 674 | 26 1/2 | 674 | 1/2 | 12 | 12.8KG |
| LDH-N70-I | 31 X 31 | 788X788 | 31 | 788 | 31 | 788 | 33 1/2 | 852 | 33 1/2 | 852 | 1/2 | 12 | 19KG |
| IN/MM | |||||||||||||
| LDHN IN/OUTSIDE OPENING | |||||||||||||
| Part No. | Size | CUTOUT SIZE | OVERALL |
ACRYLIC THICKNESS |
WEIGHT | ||||||||
| A | B | C | D | ||||||||||
| LDH-N08-O | 8 1/8 X 13 3/4 | 206X349 | 8 1/8 | 206 | 13 3/4 | 349 | 10 5/8 | 270 | 16 1/4 | 413 | 1/2 | 12 | 4.6KG |
| LDH-N10-O | 10X10 | 254X254 | 10 | 254 | 10 | 254 | 12 1/2 | 318 | 12 1/2 | 318 | 1/2 | 12 | 4.3KG |
| LDH-N20-O | 12 1/2 X 17 1/2 | 318X444 | 12 1/2 | 318 | 17 1/2 | 444 | 15 | 382 | 20 | 508 | 1/2 | 12 | 7.1KG |
| LDH-N30-O | 14 1/2 X 19 1/2 | 369X495 | 14 1/2 | 369 | 19 1/2 | 495 | 17 | 433 | 22 | 559 | 1/2 | 12 | 8.5KG |
| LDH-N40-O | 16 1/2 X 16 1/2 | 419X419 | 16 1/2 | 419 | 16 1/2 | 419 | 19 | 483 | 19 | 483 | 1/2 | 12 | 8.3KG |
| LDH-N50-O | 19 1/2 X 19 1/2 | 495X495 | 19 1/2 | 495 | 19 1/2 | 495 | 22 | 559 | 22 | 559 | 1/2 | 12 | 10.4KG |
| LDH-N60-O | 24 X 24 | 610X610 | 24 | 610 | 24 | 610 | 26 1/2 | 674 | 26 1/2 | 674 | 1/2 | 12 | 13.0KG |
| LDH-N70-O | 31 X 31 | 788X788 | 31 | 788 | 31 | 788 | 33 1/2 | 852 | 33 1/2 | 852 | 1/2 | 12 | 19.2KG |
| IN/MM | |||||||||||||
